OAuth Authentication

This section describes the setup procedure for using OAuth authentication with OpenID Connect compliant authentication provider in the MailDepot Administration Console.

Supported Provider

MailDepot supports following OpenID Connect authentication providers.

MailDepot provides user authentication using the OAuth 2.0 authorization protocol with authentication provider.

Configuration File

To use OAuth authentication with MailDepot dministration Console, you need to create the following configuration file.

/opt/maildepot3/domain/DOMAIN/etc/oauth.conf

Set the following parameters in the above configuration file.

Parameter Name Description
provider_name Name of Provider
authorize_endpoint Endpoint for Authoirzaion API
token_endpoint Endpoint for Token API
userinfo_endpoint Endpoint for Userinfo API
token_scope OAuth scope parameter
user_attr Attribute name for login name
client_id OAuth client ID
client_secret OAuth client secret

The setting values for the above parameters differ depending on the authentication provider.
And the client ID and client secret are provided by authentication provider.
To obtain these values from the authentication provider, you need to register an OAuth client on the authentication provider.

Setting for KAOauth
Parameter name Parameter value
provider_name KAOauth
authorize_endpoint https://DOMAIN_NAME/openid/authorize
token_endpoint https://DOMAIN_NAE/openid/token
userinfo_endpoint https://DOMAIN_NAE/openid/userinfo
token_scope openid profile
user_attr login_name

An example configuration for KAOauth is shown below.

provider_name = KAOauth
authorize_endpoint = https://****.auth.kaoauth.com/openid/authorize
token_endpoint = https://****.auth.kaoauth.com/openid/token
userinfo_endpoint = https://****.auth.kaoauth.com/openid/userinfo
token_scope = "openid profile"
user_attr = "login_name"
client_id = "*******"
client_secret = "********"
Setting for Microsoft Entre ID
Parameter name Parameter value
provider_name Microsoft
authorize_endpoint https://login.microsoftonline.com/TENANT_ID/oauth2/v2.0/authorize
token_endpoint https://login.microsoftonline.com/TENANT_ID/oauth2/v2.0/token
userinfo_endpoint https://graph.microsoft.com/v1.0/me
token_scope openid email
user_attr mail

An example configuration for Microsoft Entre ID is shown below.

provider_name = Azure
authorize_endpoint = https://login.microsoftonline.com/********/oauth2/v2.0/authorize
token_endpoint = https://login.microsoftonline.com/********/oauth2/v2.0/token
userinfo_endpoint = https://graph.microsoft.com/v1.0/me
token_scope = "openid email"
user_attr = "mail"
client_id = "*******"
client_secret = "********"
Setting for Google Identify
Parameter name Parameter value
provider_name Google
authorize_endpoint https://accounts.google.com/o/oauth2/auth
token_endpoint https://accounts.google.com/o/oauth2/token
userinfo_endpoint https://www.googleapis.com/oauth2/v1/userinfo
token_scope openid email
user_attr email

An example configuration for Google Identify is shown below.

provider_name = Google
authorize_endpoint = https://accounts.google.com/o/oauth2/auth
token_endpoint = https://accounts.google.com/o/oauth2/token
userinfo_endpoint = https://www.googleapis.com/oauth2/v1/userinfo
token_scope = "openid email"
user_attr = "email"
client_id = "*******"
client_secret = "********"

Registation of OAuth client

To use OAuth authentication with MailDepot Administration Console, you need to register an OAuth client on your authentication provider.

When registering OAuth client on authentication provider, you need to register the redirect URI for your site.
Specify the following URL of MailDepot Administration Console as the redirect URI.

HTTPS is disabled http://HOSTNAME/DOMAIN/oauth/callback
HTTPS is enabled https://HOSTNAME/DOMAIN/oauth/callback

You need to specify the host name of the MailDepot server for HOSTNAME, specify the domain that was created during MailDepot installation for DOMAIN.

Automatic User Registration

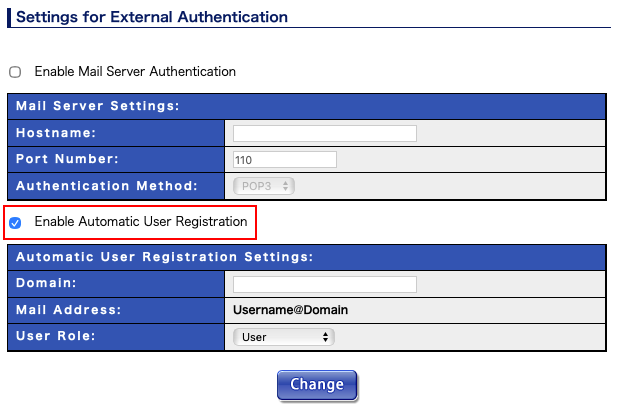

When automatic user registation is enabled on "Register New User" screen, MailDepot create account for user who is authenticated with OAuth provider.

If automatic user registration is disabled and authenticated user by OAuth provider does not have account on MailDepot, that user cannot log in to the MailDepot Administration Console.

Login with OAuth

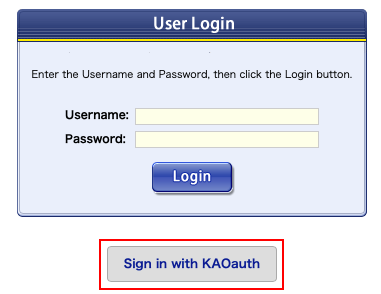

When OAuth authentication for the MailDepot Administration Console is configured, the login screen will display an login button for OAuth authentication.
